30mA Mobile X-ray machine Fluoroscopy & Radiography LT-FR30-III

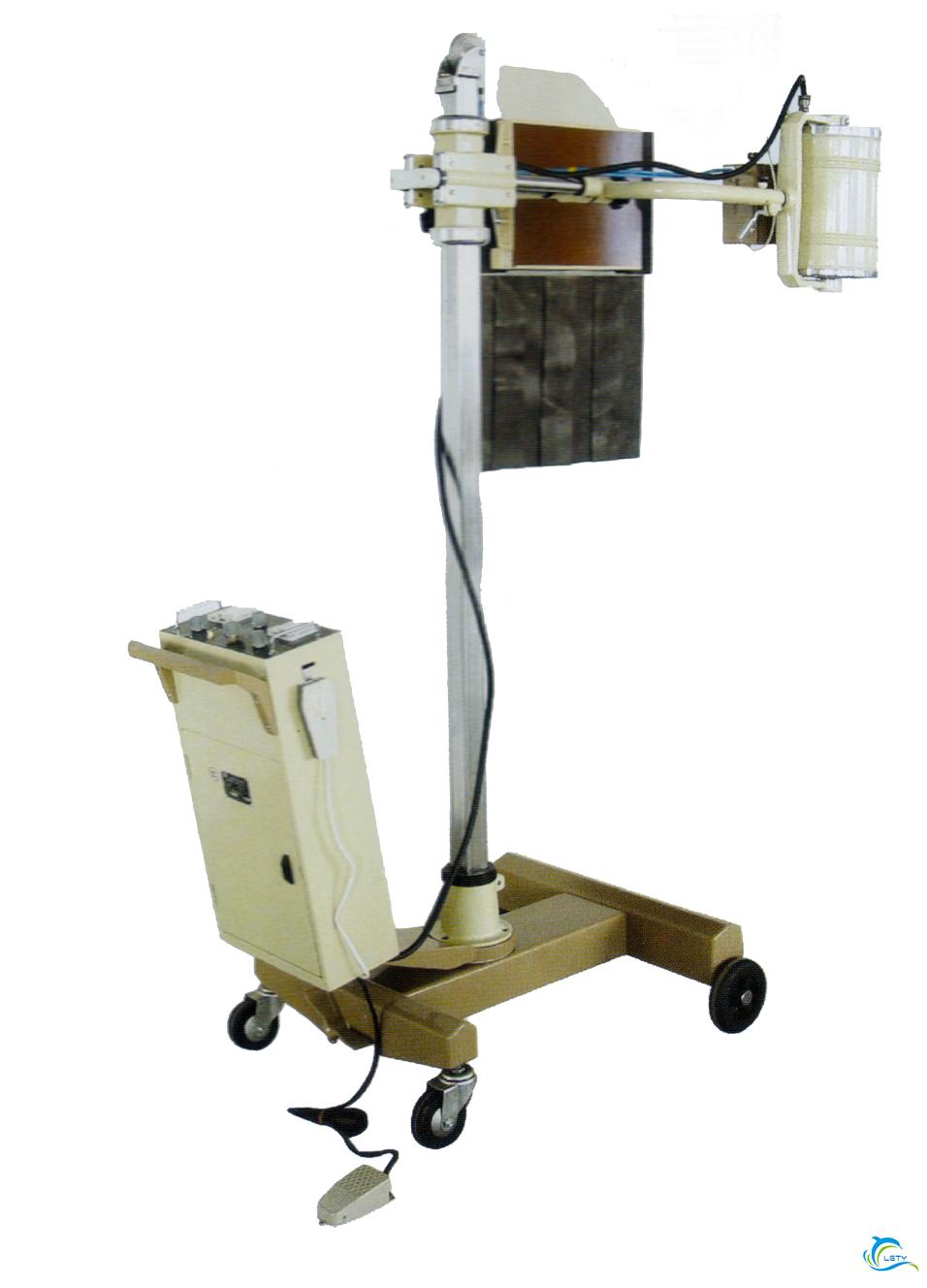

30mA Mobile X-ray machine

(Fluoroscopy & Radiography )

Model: LT-FR30-III

Feature:

1.Can be used in ward and emergency treatment

room for fluoroscopy and radiography.

2.X-ray generator is combined.

3.Single focus, bridge rectification.

4. It is precise, safe, reliable and flexible.

5. A wireless remote control device (control range≥5 m) is used.

Main technical parameter of 30mA x-ray unit:

X-ray generator	Stationary anode, single focus, and bridge silicon rectification, The X-ray generator is an oil-immersed self-cooled unit.
Max rated capability	85kVp,30mA
Power supply	Voltage: 180~240V
	Frequency: 50Hz
	Power: not lower than 3kVA
	Resistance: not larger than 0.7Ω
Voltage adjustment range of x-ray tube	divided into 8 steps 50~85kVp
Range of the timer	0.2~10 s
Fluorescent screen size	280 mm×350 mm
Distance between the focus to the screen	700 mm
Tube head carriage movement range	vertical: 1100 mm
Tube head carriage movement range	horizontal: 160 mm
The rotation angle of tube head carriage	90°
The rotation angle of the controller and the accessory case	80°
Specification of X-ray tube	Model XD 1-3/100 fixed anode, single focus 2.3mm
Transport dimension	1650×880×600 mm
Net weight, Gross weight	NET 98kg/ GROSS 164kg
