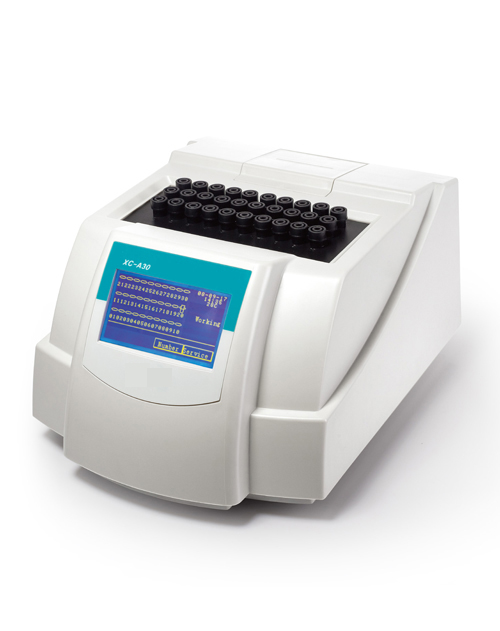

ESR Analyzer / Erythrocyte Sedimentation Rate Analyzer LT-ESR-A30

ESR Analyzer / Erythrocyte Sedimentation Rate Analyzer

Model: LT-ESR-A30

Features

Random access

Up to 30 samples can be scanned simultaneously

Throughput: up to 60 samples /hour

Temperature compensation refer to 18oC according to Westergren method

ESR curve display and print-out

Touch screen , large LCD display

Built-in internal thermal recorder

Specifications

Area of application                Erythrocyte sedimentation rate analysis

Measuring principle               Infrared sensor

Reading channels                  30 available channels

Loading capability                 Up to 30 samples at a time

Loading pattern                     Random

Measuring time                      30 minutes or 60 minutes selectable

Throughput                            Up to 60 samples per hour

Analysis result                        In Westergren ESR value (mm/hr)

Temperature compensation    Refer to 18°C automatically (selectable)

Reading resolution                 0.2mm

Reproducibility                      < 0.3% or 2mm/1h

Result resolution                   1mm/1h

Blood level range                  50mm~64mm

Display                                 LCD screen with backlight

Input                                    Touch screen

Interface                               RS-232 serial port

Print                                     Internal thermal recorder

Power supply                       AC 220V/110V ±10%, 50/60/Hz, 50W

Operation conditions            Temperature 15C°~32°C Humidity ≤85%

Dimension                            400mm×300mm×200mm(L×W×H)

Net weight                           11.5kg
