Clinic Laboratory Equipment

  • Portable ATP Hygiene Monitoring System

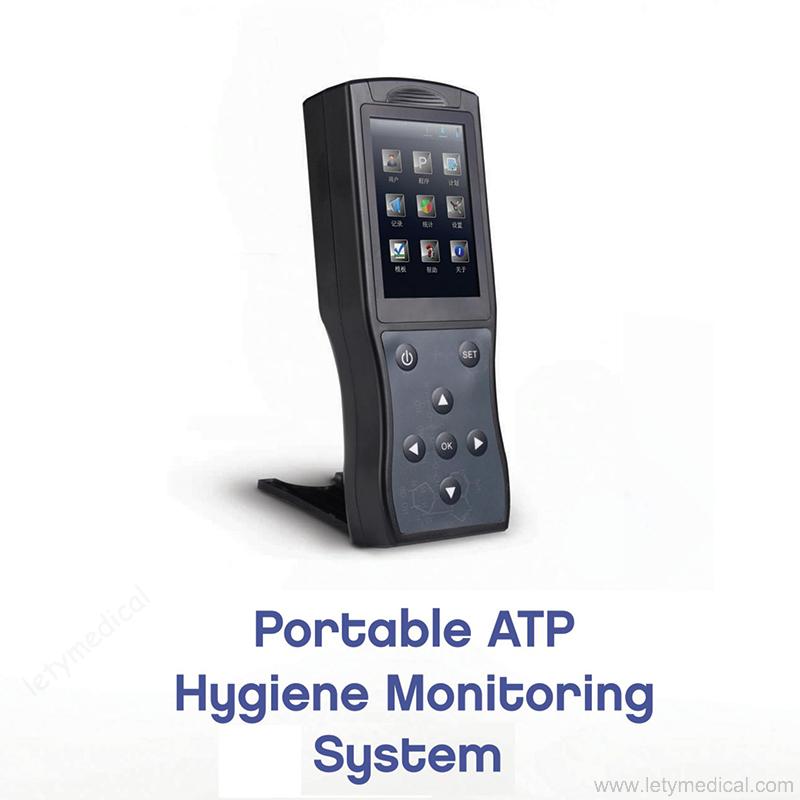

Portable ATP Hygiene Monitoring System

Portable ATP Hygiene Monitoring System

  • Portable ATP HygieneMonitoring System
  • Portable ATP
  • ATP HygieneMonitoring System
  • ATP
  • Product description:
  • INQUIRY

Open reagent options

The matching ATP Quickswab swabs by LETY are recommended to ensure the accuracy of test results.

Rapid detection

10s per sample.

Automated operation

3.5-inch color screen, minimalist buttons, friendly and easy-to-use human-machine interface.

Quantified results

Visual display of the data, easy to interpret, with a detection limit of 1x10-16mol ATP.

Software intelligence

After the detection is completed, the data can be uploaded to Biolum's unique analysis software, which can track and archive the detection results, and analyze the trend of detection sites.

Detection protection

With a built-in inclination sensor, if the instrument is tilted out of range, the detection will be stopped to ensure the accuracy of the detection.

Minimized size

Portable design, the overall weight of the whole product is less than 300g for one-handed operation.

Product Parameters

Product Model

LTL-ATP1

Authoritative Certifications

NMPA, CE, etc.

Volume

7 cm*3.5 cm*18.9 cm(W*D*H)

Weight

Up to 300g (including battery), one-handed operation.

Display

Large color screen, visual display of data

Detection accuracy

1×10-16 mol ATP

Detection Range

0-999999 RLUs

Lower Limit of Detection

1.0 CFU/mL

Power-on Self Test

15s or 60s

Testing time

10s

Detection Protection

With a built-in inclination sensor, if the instrument is tilted out of range, the detection will be stopped to ensure the accuracy of the detection.

Test Chamber

Movable, washable and replaceable

Accuracy

± 5% or ±5 RLUs.

User Settings

256 user IDs, 256 detection plans, and 2000 detection program thresholds

Analytical Statement of Results

The result levels can be displayed based on RLU values calculated by the precomputed formula.

Result Output

Bluetooth thermal printer can be configured to print detection results in real time.

Storage

10000 data records.

Data Queries

Quick access to statistical results:

RLU value, date, time, etc.; in combination with the specific software, result data can be queried on a computer by time, place, etc.;

histograms, pie charts, line graphs and other intuitive diagrams are available, for easy and on-demand access to analysis and monitoring.

Data Transfer

USB port for real-time transmission of results to the PC during the detection.

Built-in Bluetooth module for wireless transmission of detection results to a PC via a Bluetooth adapter

Power Supply

Rechargeable lithium-ion battery, charged via MiniUSB port;

Optional solar charger and car power charger are also available.

Operating Time

Continuous operating >10h; standby time: >500h

Compatible Kits

All-in-one swabs with stabilizing liquid media, to meet the needs of rapid on-site detection.
