Spectrophotometer

Spectrophotometer LT-V5600

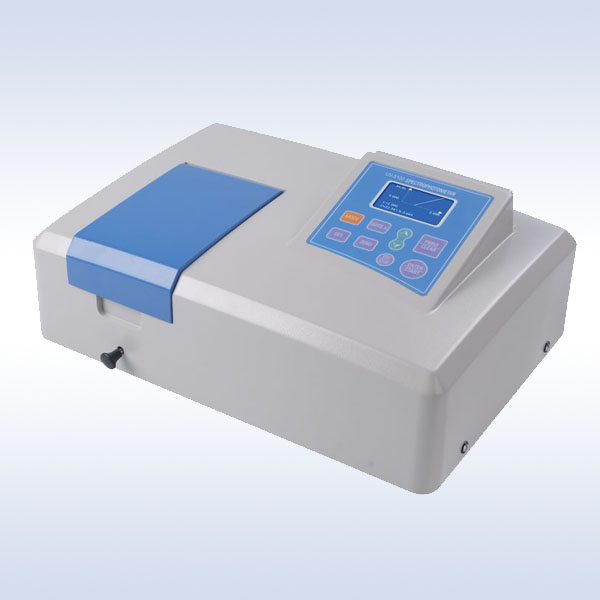

Visible Spectrophotometer

LT-V-5100

Features

※ Large LCD screen (128x64 Dots).

※ Can display and save 50 groups of data, 3 groups per screen.

※ Data can be restored after a sudden power cut.

※ Auto setting wavelength.

※ Tungsten lamp & deuterium lamp can be turned on/off individually to extend lifetime.

※ Automatical WL. calibration and dark current getting.

※ Optional software UV-Professional can expand the applications to Kinetics and Quantitatives.

Model	LT-V-5100
Optical System	Single beam, Grating 1200 lines/mm
Wavelength Range	325-1000nm
Bandwidth	4nm
Wavelength Accuracy	±1nm
Wavelength Repeatability	0.5nm
Wavelength Setting	Auto
Photometric Accuracy	±0.5%T
Photometric Repeatability	0.3%T
Photometric Range	-0.3-3A,0-200%T
Stray Light	≤0.3%T
Stability	± 0.002A/h @ 500nm
Display	128*64 Dots LCD
Detector	Silicon Photodiode
Standard Cell Holder	4-position 10mm cell changer
Light Source	Tungsten Lamp
Output	USB Port & Parallel Port(Printer)
Power Requirements	AC 85~250V
Dimension	420280180mm
Weight	10kg
