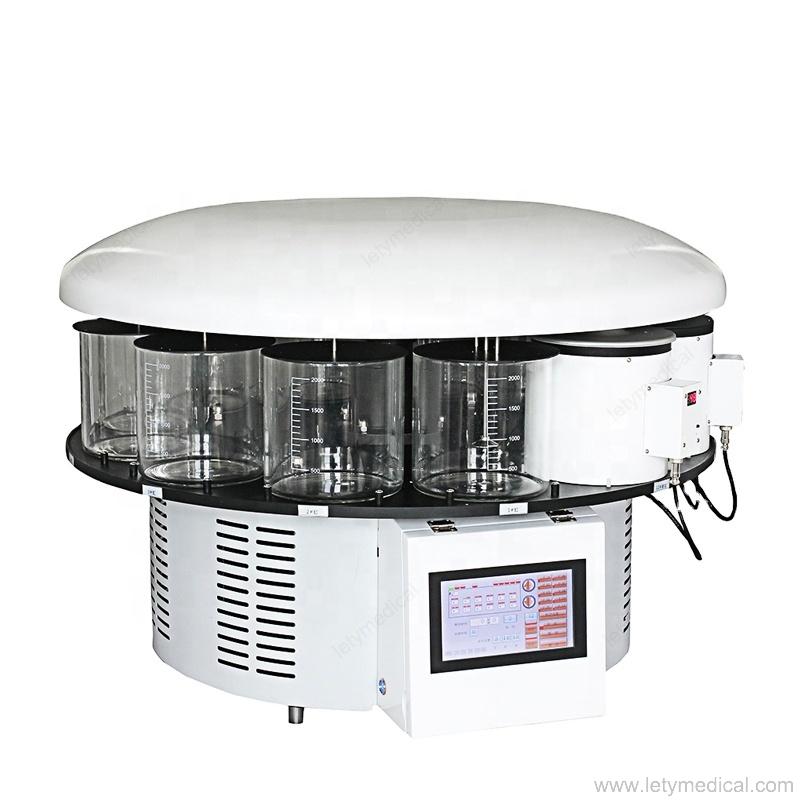

Clinical Analytical Equipment Pathology Histology Spin Vacuum Automatic Histo Carousel Tissue Processor

Clinical Analytical Equipment Pathology Histology Spin Vacuum Automatic Histo Carousel Tissue Processor

Model:LTL-HS-569

Features:

1. Microcomputer controlling of the whole operating process so as to ensure operating convenience and working stabiligy

2. Tissue basket relocating controllling perch enabling the tissue to be put in any jar

3. Electricity protection and obstacle protection functions

4. Agitation dehydrate mode 10 achieve good dehydrate effect

5. Large LCD screen showing every step of processing and easy for monitoring

6. Timning : delay timing max 99 da ys 99 hours 59 mins

7. Jar processing time : Max 99 hours 59 mins timeing increment : 1 min

8. Constant temperature controlling system adopted on the paraffin jar to ensure high precision of temperature controllong . Internal surface oxidation treatment.

9. There are 8 programs selectable

10. Battery backup for 8 hours except the paraffin jar

11. Addopted with electric lock and passward for specific person use

Technical Data:

1.  Carousel type with 12 stations,10 reagent container, 2 wax paraffin container

2.  Option: two basket loading, 3 Wax baths

3.  Capcity: 2.3 L for reagent container, 1.8 L for wax parafin container

4.  Temperatuer of wax container: range: 45 -85

5.  Tissue baskets made of metal with varying capacities of up to 100 cassettes

6.  Tissue basket stirring 1 minute interval every 4 minutes inside of container

7.  Battery backup 4 hours

8.  Ergonomic control panel with foil – protected keyboard and LCD

9.  Infiltration time separately programmable for each station

10. Easy editing and changing of programs even during a processing run

11. Programmable infiltration time : 99 h 59 min per statiion , delayed start , 99 days , 99hs ,59mins

12. Programs Number: 8, selectable

13. Vaccuum device pressure: max 0.05 Mpa (approx 0.5 bar)

14. Standard tissue baskets : Size :Φ 120X100mm

15. Number: 1 (2 optinal ), Capacity: max 100 cassettes

16. Net weight: 80 kg

17. Instrument dimension: Φ780mm X height: 570mm-690mm

18. Nominal voltage: 220 V AC±10%  Nominal frequency: 50/60Hz

19. Power : 800W

Accessories:

Standard Setting List

1. Reagent bottle           9 pcs

2. Paraffin wax tank        3 pcs

3. Paraafin wax tank connection line  3 pcs

4. Tissue basket           1 pc

5. Tisssue cassette        20 pcs

6. Hexagonal Wrench       1 pc

7. Screwdriver              1 pc

8. Fuse (5A)               2 pcs

9. Power line              1 line

Optional Accessories

Extra paraffin tank

Extra reganet tank

Package Info:

Each instrument packed Wooden Case

Ourter Case Dimensions (for machine): 790*790*680 mm,

Ourter Case Dimensions ( for tanks ) : 675*475*550 mm,

Gross Weight: 130 kg
