  • Product description: Aed External Defibrillator Desfibrilador DM7000 Automated External Defibrillator Monitor Medical
  • INQUIRY

Factory Medical Convective Warming System single use disposable warming blanket Medical Heating Blanket device

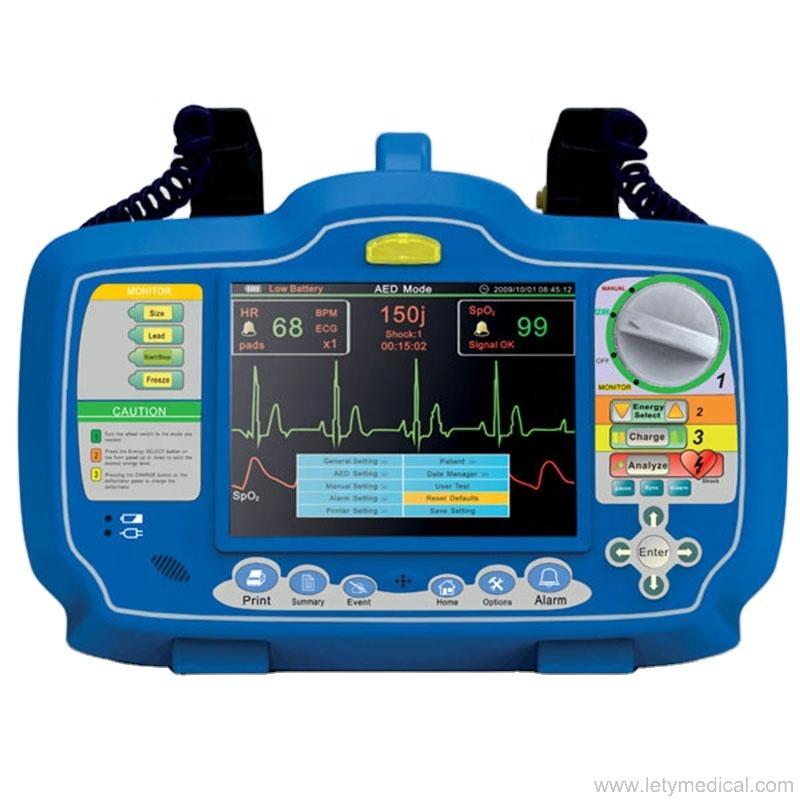

Medical Aed External Defibrillator Monitor with Defibrillation and Monitoring First-Aid



Model: DM7000




Display
Display Type: 7 inch high resolution LCD display
Sweep Speed: 25mm/sec.
Information: HR, LeadPads, On/Off Alarm, SpO2, AED Functions and Prompts, Alarm Selection and Limits, Delvered Energy.
Defibrillator
Waveform: Biphasic
Charge Time: Less than 7 seconds with a new ully charged battery.
Energy Display: Monitor display indicates both selected and delivered energy.
Charge Prompt Type: Voice and visual prompts.
Electrode Impedance Measurement Range: 0- 250 ohms.
ECG Monitoring
Paltient Connection: 5 Head ECG cable, or 3- -lead ECG cable, paddles.
Lead Selection: Displayed on monitor, paddles, I, I, I AVR, AVL, AVF, V.
ECG Size: 0.25, 0.5. 1. 1.5, 2, 4 cm/mV diplay on monitor.
Heart Rate: 20 -300BPM.
Heart Rate Alarm: On/Off displayed on monitor, user-selectable.
Smart Alarms: Beeper/voice prompts indicate shockable rhythm.
SpO2 Module(Optional)
Measurement Range: 30-100%,+-2% between 80%-90%,others+-5%
Alarm Range: User set high limit and low limit.
Alarm Accuracy:+-1 0% within setting values.
Alarm time Accuracy: Less than 12 sec.
Recorder
Paper: 50mm thermal.
Speed: 12.5mm/sec 25mm/sec 50mm/sec. User seletable 6 second delay.
Printing Method: High- resolution, thermal print head.
Print-out Modes: Manual or automatic, user-configurable.
On/Off Control: Front panel and paddle.
Automatic Function: 9-seconds recording itiated by alarm activation or drfirilltar charge or de-
fbillator discharge.
Battary
Type: FRechargeable, Ni- MH battery, 12V.
Operating Time: For a new, fully charged battery: 60 difirillitor discharges at maximum energy, or3
hours minimum of continuous ECG monitoring.
Additional parameters will effect operating time with different functions.
AED Mode
AED Function: Auto analyze and charge X3 with programmable auto energy level selection, screen
prompts, and voice prompts.
Shockable Rhythms: Ventricular fbillioan with ampltude > 200UV, ventricular tachycardia with
rates >=140bpm,
and QRS complex wave duration >=140ms.
Charge Control: Control on device front panel, press key on paddle.
Prompts: Volce and visual prompts.
Manual Mode
Energy Selection: Sellectable at2, 5, 7.10, 20, 30, 50, 70, 100, 150, 200, 300, 360 joules.
Synchronized Mode: Synchronizes dibillaior puise to patient's R -wave. "SYNC* message dis-
played on monito

DEFRIBILATOR 3.jpg
DEFRIBILATOR 4.jpg
DEFRIBILATOR 5.jpg
