Flow Through Cell Dissolution System Dissolving system by flow pool method Flow-Through Cell Apparatus

Model:LTL-RT7

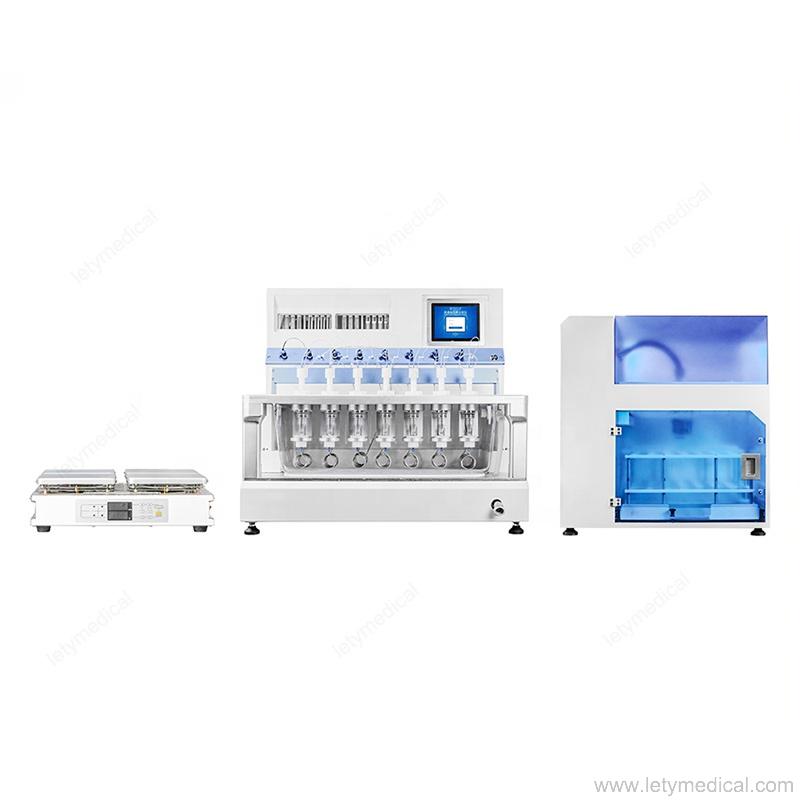

Flow-Through Cell Dissolution Apparatus

Flow-Through Cell Apparatus
The 7-channel flow-through cell apparatus can adapt to various pharmacopoeia standard cell. At the same time, Raytor provides flow-through cell customization service to further meet the flow-through cell dissolution test of various special samples.
Each flow-through cell channel has independent temperature sensor, which makes the temperature control more accurate.
Teflon pipe with high chemical stability and high anti adsorption is adopted. It can effectively avoid corrosion of pipe or adsorption of samples

High Precision Injection Pump
The flow rate of the dissolution method can be preset. The flow rate mode can be selected as constant flow mode (no pulse) or pulse mode.
The range of velocity variation is less than ± 5%. In pulse mode, the error of pulse frequency is less than ± 10 pulse / min
In 3 + 4 mode, the two groups of pumps can set different operating parameters and perform two groups of different dissolution experiments at the same time.
In the open-loop mode, the type and flow rate of dissolution medium can be changed automatically

Human Computer Interface
The 8.4-inch touch screen is pre installed with Raytor dissolution operating system, which meets the requirements of data integrity.

Integrated Water Bath.
Integrated molding round corner design, no clean dead corner, water bath can be completely drained.

Automatic Sampling Workstation

One automatic sampling workstation can meet the requirements of closed-loop or open-loop sampling.
In the open-loop mode, interval sampling, continuous sampling or split ratio sampling can be selected
The sample holder is suitable for 300ml sample bottle, 10ml test tube or LC vial respectively.
Teflon pipe with high chemical stability and high anti adsorption is adopted. It can effectively avoid corrosion of pipe or adsorption of samples.

Dissolution Medium Heating and Stirring Apparatus

It is used for heating and stirring the dissolution medium to ensure that the medium has beer preheated to the appropriate temperature before entering the flow-through cell.
Heating temperature and stirring speed can be set.
It supports the parallel operation of multiple dissolution medium heating and stirring apparatus.

Operating System Fully Compliant with Data Integrity

Software system: The software system is simple to operate and easy to use; it can store at least 200 dissolution test methods; the system storage capacity can meet at least 10 years of record storage.

User Permission Management: It can preset at least 100 login accounts and user login passwords; it can assign at least three permission roles (system administrator, laboratory supervisor, laboratory analyst); and it can flexibly customize the rules of permission role according to user's own risk assessment.

Audit tracking: Audit tracking functions of individual accounts at all levels, including login records, experimental records, operating records, cleaning records, etc.

Electronic Data Integrity: Accurate and consistent electronic data can be generated synchronously in the experiment. For each experiment, the system automatically generates corresponding experimental records and supports PDF format export; experimental records and all records of the system can be retrieved, exported, backed up and printed; all the electronic data are protected from arbitrary tampering or deletion.
